Lucoline Lemon Yellow, PMS 116C, 1186 mm

LucoLINE® border tubing/contour lighting. Lemon Yellow PMS 116C , 30mm (W) x 45mm (H) x 1186mm

Läs mer om varan under fliken "utförlig beskrivning" nedan.

Artikelnamn: Lucoline Lemon Yellow, PMS 116C, 1186 mm
Artnr: L-LY-1186
Dokument (2)

Art. nummer & skylttyp

Artnr: L-LY-1186

Utförlig beskrivning

LucoLINE Lemon Yellow, PMS 116C, 1186 mm, 5 W p.m.

• 5 year extended warranty*
• Bright and consistent illumination through advanced optics
• IP67 condensation proof. Protection class IP66
• UV stable
• Cuttable every 55
• Cut section can be reused
• Breather filet
• Quick and easy install
• Safe to touch with zero shock risk
•The most reliable border tubing in the industry
• Long (> 80.000hrs) and maintenance-free life
• Runs up to 38 meters on only one power supply
• Fast and easy installation

Lucoline® is designed to be used in architectual linear accent lighting applications such as petrol station canopies, building outlines, interior accents etc. LucoLINE® is the most innovative border tubing in the industry.

Lucoline® uses advanced optics to create an even, bright, illumination in a 30 mm extruded profile. It has a condensation proof design with an integrated breather filter a and silicon coated aluminium PCB’s in an aluminium carrier profile.

Lucoline® is designed to be installed quickly and easily on any building structure surface. It has a plug-and play IP67 JSTconnector system. Lucoline® is cuttable every 55 mm and is easily resealable.The remaining cut piece can be used elsewhere in the installation, thus minimizing waste and optimizing material use.

Please note that the colors you see on the screen may slightly differ from actual colors. For a more accurate representation of colors, please refer to a pantone® book.

Specifikationer

• Color: PMS 116C Lemon Yellow • Dimentions: 30mm (W) x 45mm (H) • Length: 1186mm • Cuttable every 55mm • 5 year extended warranty* • Housing material in extruded PMMA or PC • Mounting clips in UV stabilized polycarbonate • Mounting clip pull force >17kgs • Mounting clip shear force >30kgs • JST JWPF IP67 connectors • Constant Current Technology • IP67 condensation proof. Protection class IP66 • Operating temperature -300C ~ +600C
Artnr: L-LY-1186
Relaterade varor och tillbehör

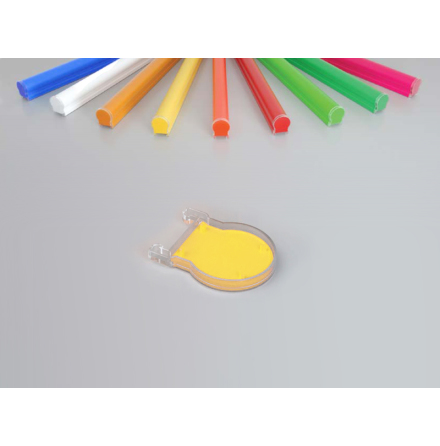

  • Endcap for Lucoline Lemon Yellow, PMS 116C.
    Art nr. L-LY-END

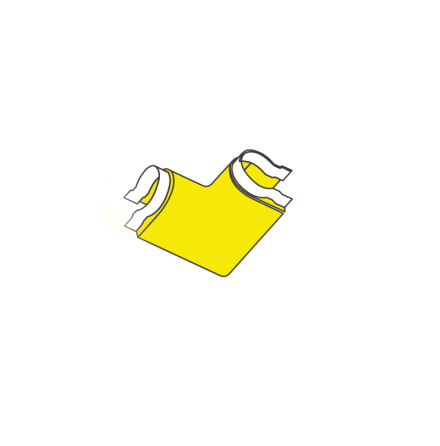

  • Inside Corner, Lucoline Lemon, RAL 116C
    Art nr. L-LY-CRN-INS

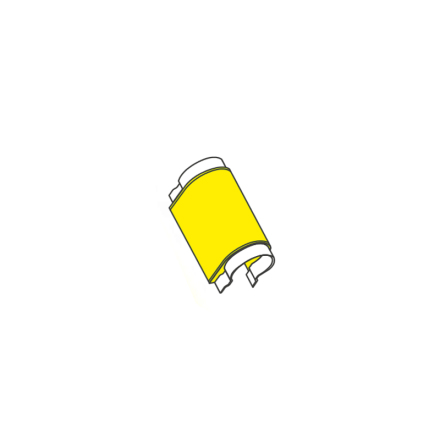

  • Joint Cover, Lucoline Lemon Yellow, PMS 116C
    Art nr. L-LY-JNT

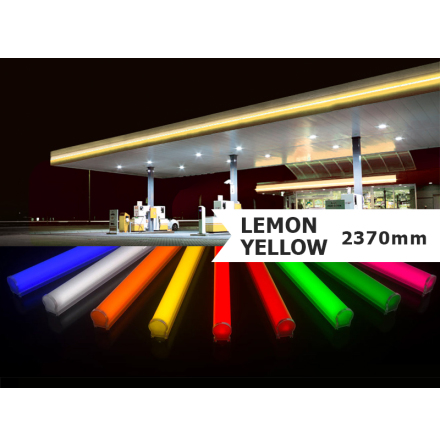

  • LucoLINE® border tubing/contour lighting. Lemon Yellow PMS 116C , 30mm (W) x...
    Art nr. L-LY-2370
  • LucoLINE® border tubing/contour lighting. Lemon Yellow PMS 116C , 30mm (W) x...
    Art nr. L-LY-600

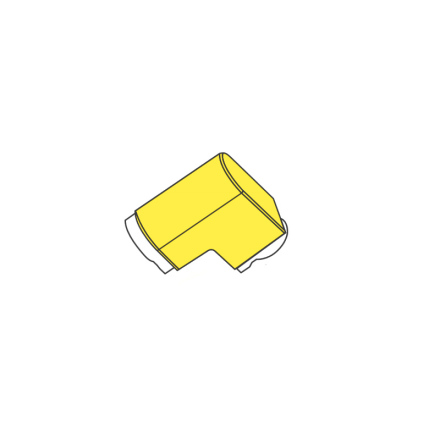

  • Outside Corner, Lucoline Lemon, PMS 116C
    Art nr. L-LY-CRN-OUT

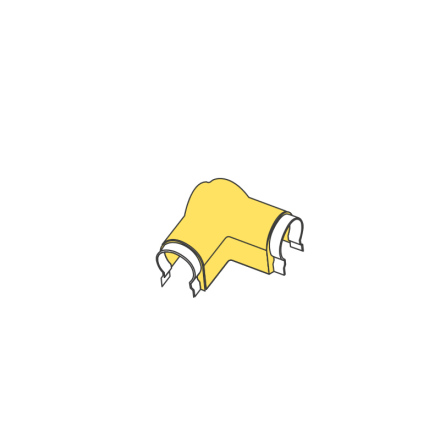

  • Step Corner, Lucoline Yellow, PMS 116C Lemon
    Art nr. L-LY-CRN-STP

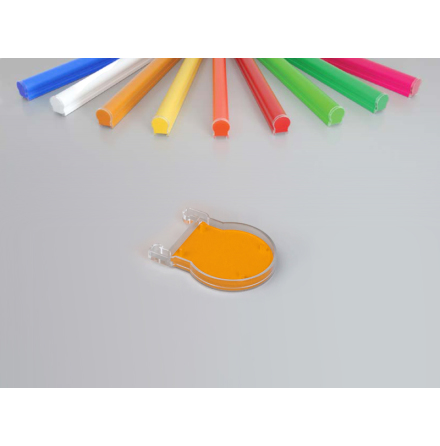

  • Endcap for Lucoline Yellow, PMS 2010C.
    Art nr. L-Y-END

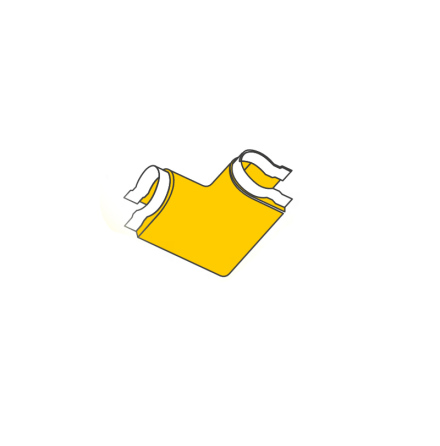

  • Inside Corner, Lucoline Yellow, PMS 2010C.
    Art nr. L-Y-CRN-INS

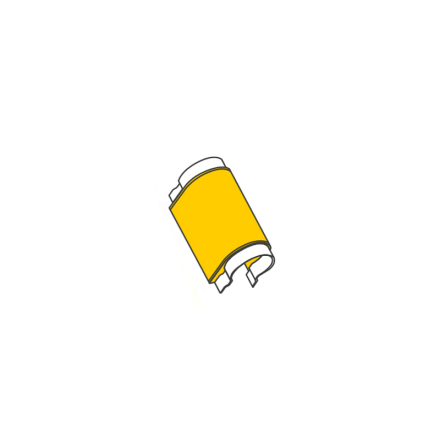

  • Joint Cover, Lucoline Yellow, PMS 2010C.
    Art nr. L-Y-JNT
  • LucoLINE® border tubing/contour lighting.Yellow PMS 2010C, 30mm (W) x 45mm (...
    Art nr. L-Y-1186
  • LucoLINE® border tubing/contour lighting.Yellow PMS 2010C, 30mm (W) x 45mm (...
    Art nr. L-Y-2370

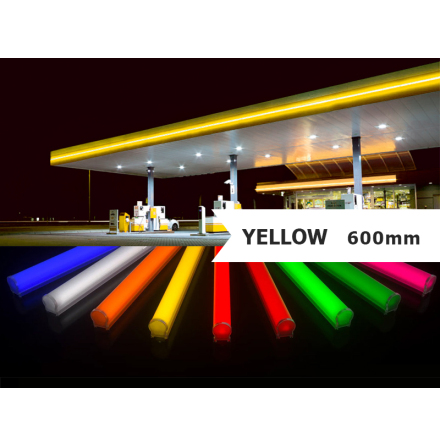

  • LucoLINE® border tubing/contour lighting.Yellow PMS 2010C, 30mm (W) x 45mm (...
    Art nr. L-Y-600

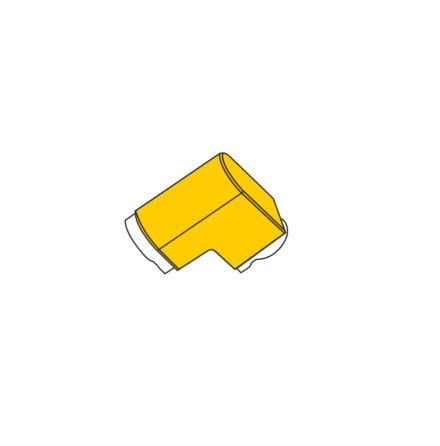

  • Outside Corner, Lucoline Yellow, PMS 2010C
    Art nr. L-Y-CRN-OUT

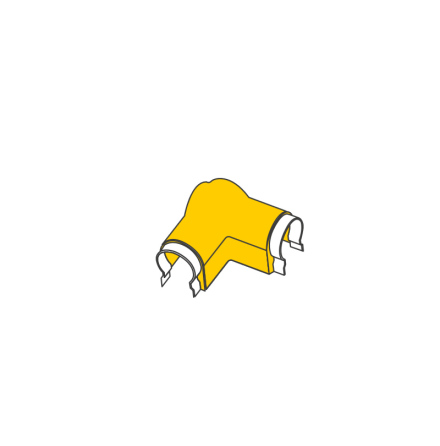

  • Step Corner, Yellow Lucoline PMS 2010C
